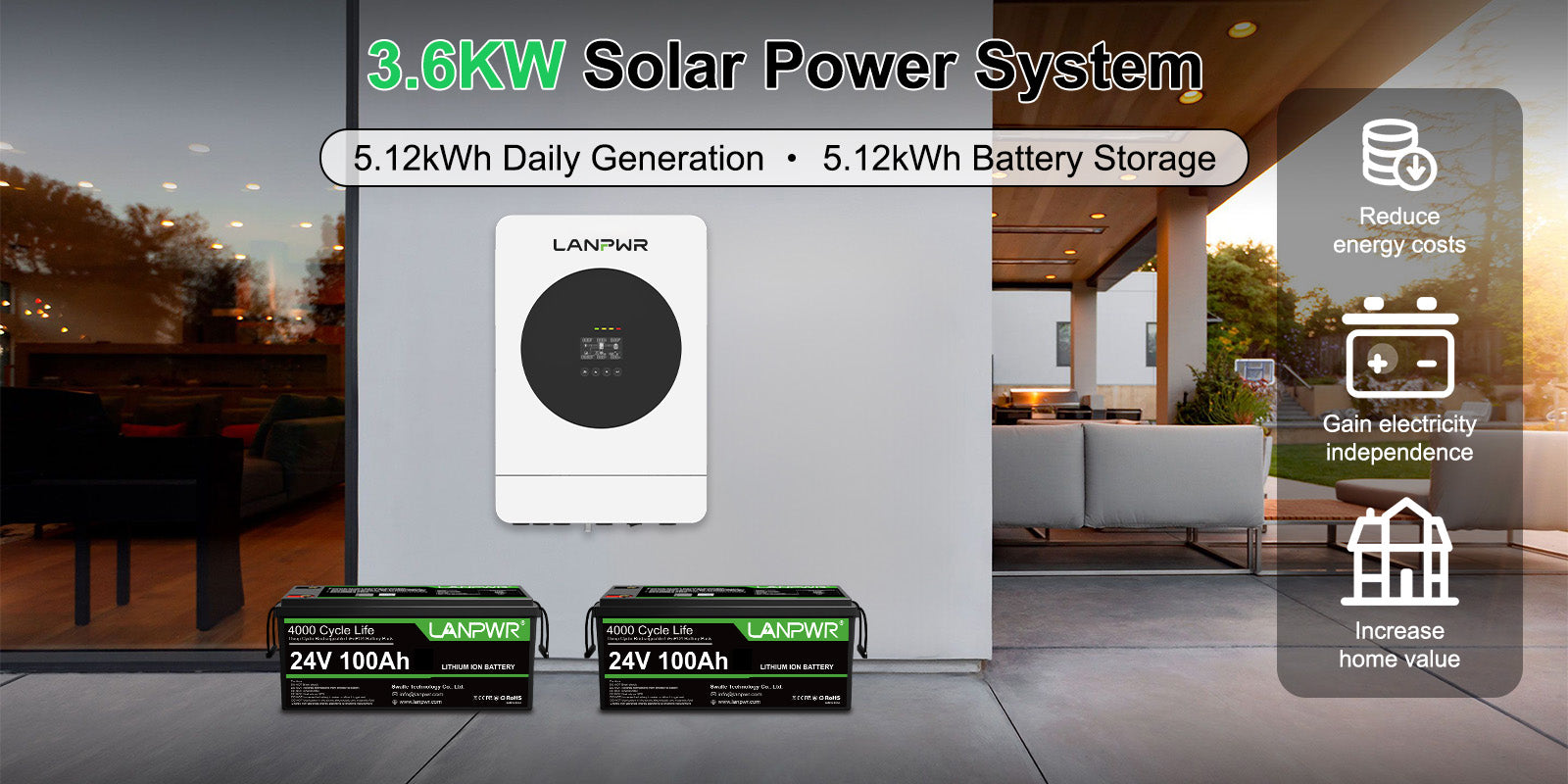

LANPWR 1440Wp 3600W 24V 5.12kWh Off-Grid Solar Kit - 24V 3600W Off-grid Inverter, 2x24V 100Ah LiFePO4 Lithium Battery

Highlight:

One-Stop Solution: LANPWR Off-grid 3.6kW 5.12kWh 24V Complete package includes everything you need to enhance your off-grid live - 2x24V 100Ah LiFePO4 Lithium Battery, 24V 3.6kW inverter, battery connection cable, and circuit breaker.

【Battery】Smart Bluetooth 5.0: functions of auto-connection, smart control, monitoring battery status, and battery with XiaoxiangElectric App. Max 4P: build a 25.6V 400Ah to release 10.24kWh energy.

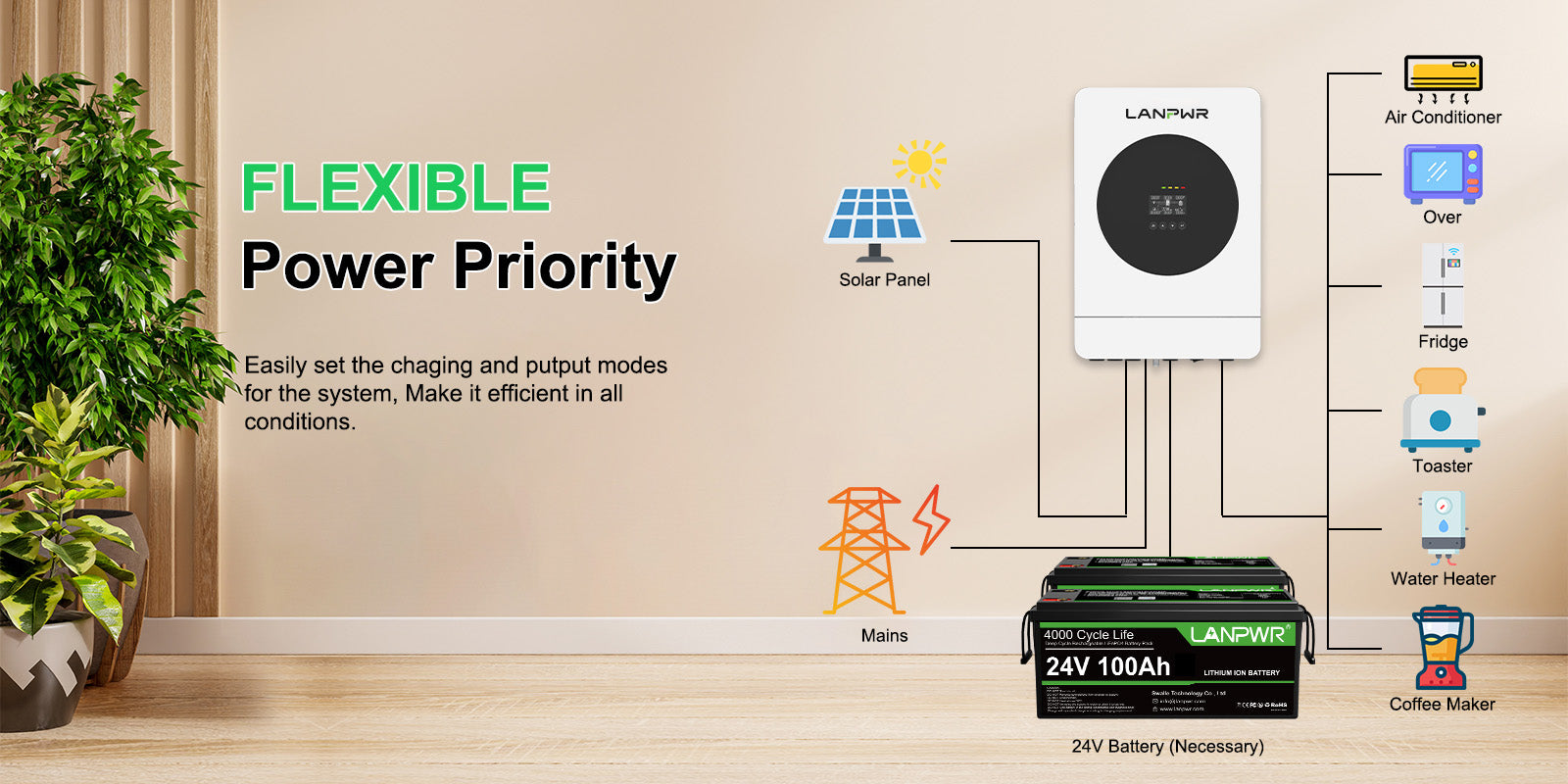

【Inverter】LANPWR 24V 3.6kW off-gird solar charge inverter, which integrates solar energy storage & means charging energy storage and AC sine wave output. Thanks to DSP control and advanced control algorithm, it has high response speed, high reliability and high industrial standard. Four charging modes are optional, i.e. Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging; and two output modes are available, i.e. Inverter and Mains, to meet different application requirements.

Sale price€1.399,99 Regular price€2.799,00
Save 50%

Option: None Solar Panels
Battery: 2*24V100Ah 5,12kWh

🔥Pre-order. Estimate to ship at the end of December

5 Year Warranty

Free Shipping

Secure Payment

Description

If efficiency, reliability and affordable are high on your wish list, LANPWR UPC-3.6KS-24V Off-grid 3.6kW 5.12kWh 24V expandable Solar Kit is an ideal choice.
LANPWR LiFePO4 Lithium Iron Phosphate Battery has twice the power, half the weight and lasts 8 times longer than a sealed lead acid battery.
All in one inverter Integrated with solar charge controller, 3600W pure sine wave inverter in one compact unit to let you enjoy the stable power from the sun and the utility grid to keep you powered under any circumstances.
LANPWR UPC-3.6KS-24V Off-grid 3.6kW 5.12kWh 24V Solar Kit can be used for several different purposes, including homes, cabins, etc. Whatever the kit is used for, you can rest assured that you are purchasing a quality system. If you have any questions regarding this product, please contact us info@lanpwr.com.

Product Specs

BATTERY

Cell Type:

Warranty:

Cycle Life:

Voltage:

Rated Capacity:

Energy:

Max. Expansion (Parallel & Series):

Internal Resistance:

Certifications:

Grand A new LiFePO4

5 Years

≥4000 times

25.6V (Nominal Voltage: 24V)

100Ah

2560Wh

2S4P

≤15mΩ

UL, FCC, CE, RoHS, UN38.3

BMS

BMS:

Max. Continuous Output Power:

Max. Continuous Charge Current:

Max. Continuous Discharge Current:

Max. Discharge Current 3 Second:

100A

2560W

100A

100A

110A

CHARGE

Charge Method:

Charge Voltage:

Recommend Charge Current:

Max. Charge Current:

Continuous discharge Current:

CC/CV

29.2V

20A

100A

100A

TEMPERATURE

Charge Temperature:

Discharge Temperature:

Storage Temperature:

Low-Temperature Protection:

0℃ to 50℃ / 32℉ to 122℉

-20℃ to 60℃ / -4℉ to 140℉

-10℃ to 50℃ / 14℉ to 122℉

Yes (32℉/0℃)

3.6KW OFF-GRID INVERTER

Battery Rated Voltage:
Battery Voltage Range:
Battery Max. Charge Current:
AC Output Rated Voltage:
AC Output Voltage Range:
Output Frequency:
Max Output Current:
Rated Current:
Peak Power:
Over Load Ability:
Peak Efciency(Batter Mode):
Transfer Time:
AC Input Input Sources:
AC Input Voltage Range:
Rated Input Voltage:
AC Input frequency:
Max PV Input Power:
Number of independent MPPT trackers:
No. of PV strings per MPPT trackers:
Max. PV Input Voltage:
MPPT Voltage Range:
Max. DC Input Current:
Max. DC Shor Circuit Current:
Range of Charge Temperature:
Range of Discharge Temperature:
Storage temperature:
Humidity:
Cooling strategy:
Altitude:
Enclosure protection rating:
Communication:
Cerifcate:

24V
20~30V
100A
3600W
208/220/230/240Vac
50/60Hz
16A
15.7A
7200W
3s@130~150% Load
>92.7%
UPS Mode: 10ms / APL Mode: 20ms
L+N+PE
APL: 90~250Vac / UPS: 170~264Vac
208/220/230/240V
50/60Hz (Auto Adaptive)
5000W
1
1/1
500V
40~450V
18A
20A
0°C~50°C
-10°C~55°C
-15°C~60°C
20-95% non-condensing
Fan
<1000m
IP20
Wi-Fi (Optional)/RS485/CAN
CE-LVD, CE-EMC

30V 180WP SOLAR PANEL

Open Circuit Voltage(V):
Peak Voltage(V):
Peak Current(A):
Short Circuit Power:
Cell Conversion Efficiency:
Solar Cell Type:
Maximum System Voltage (V):
NOCT Rated Operating Temperature:
Operating Temperature Range:
Current Temperature Coefficient:
Voltage Temperature Coefficient:
Power Temperature Coefficient:
AM Air Pressure:
R Serial Load:
T Test Temperature:
Solar Panel Length:
Solar Panel Width:
Solar Panel Thickness:
Net Weight:

36.96V±5%
30.8V±5%
5.84A±5%
6.42A±5%
22%±1%
Monocrystalline
1000V DC
48±2℃
-20℃~~ +75℃
0.1%/°C
-0.37%/°C
-0.45%/°C
1.5
5.27Ω
25°C
1262mm±2mm
710 mm±2mm
14 mm±0.5mm
3.22kg
