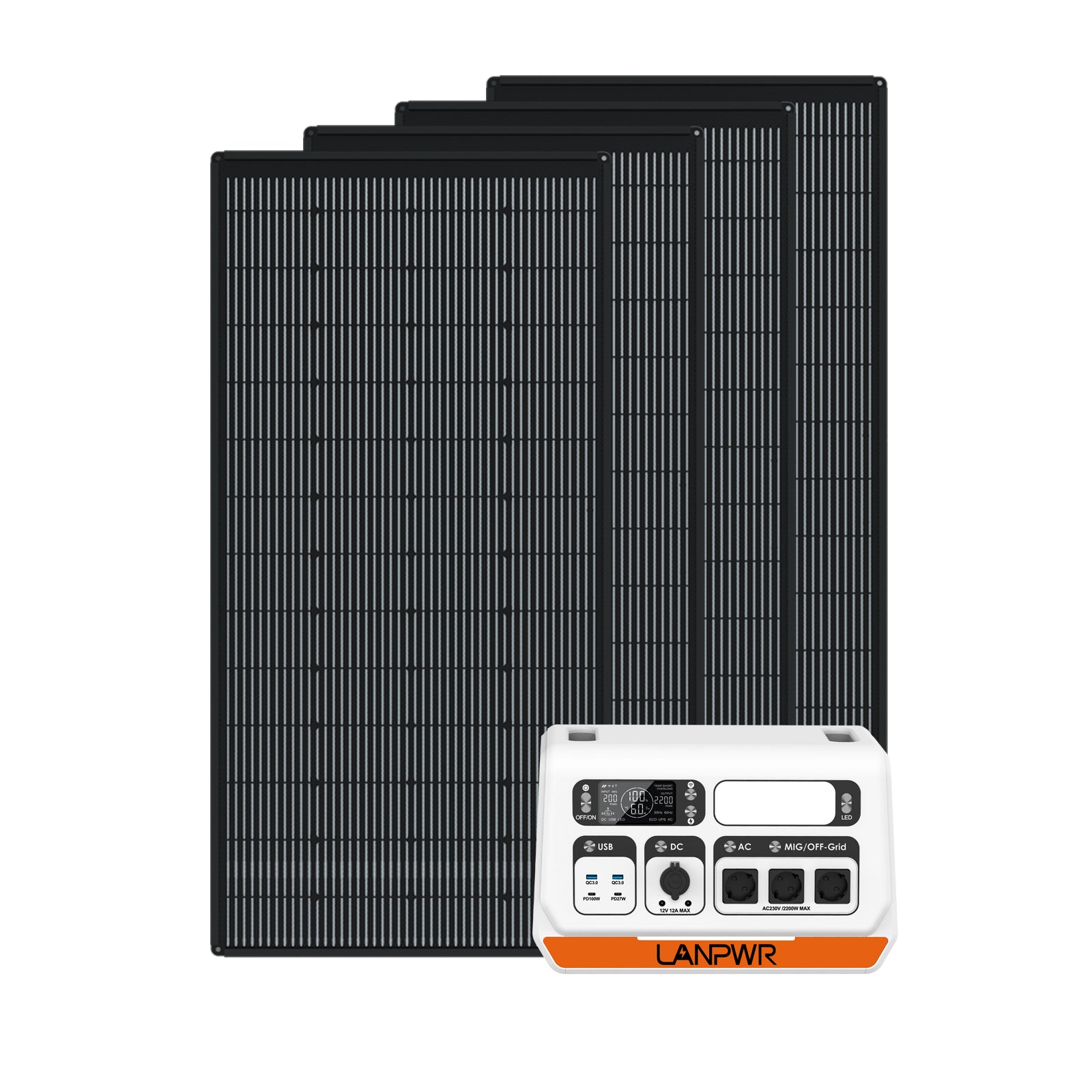

LANPWR 2200PRO Balcony Solar System
SIMPLE INSTALLATION
LANPWR 2200PRO Solar System without any installation, plug and play without an electrician, just plug it into the power socket!
SAVE ENERGY BILLS
LANPWR 2200PRO Solar System, your photovoltaics with electricity storage, and your energy bill savings are 3.5 times as much as that from using other home solar systems without batteries..
EMERGENCY SUPPLY
If you produce your own electricity, you will never be sitting in the dark! With your photovoltaic system with electricity storage you can use solar power self-sufficiently!
SOLAR ENERGY FROM YOUR BALCONY
The solar panels are attached to the balcony, connected to the storage by cable and plugged into a standard wall socket. This self-generated electricity is fed back directly into this socket and is available in the entire apartment – without any construction site in your home, without any technician or tons of paperwork.
SMART APP
Smart App monitor data in real time, the microinverter can allocate just the right amount of electricity to each appliance, and the surplus to a portable power station. During peak hours, it prioritises home use. And most of the energy gets stored in off-peak times.
Power Station with On-grid Inverter (support 200W/400W/600W/800W) Inside
We integrate the on-grid inverter into the power station, greatly simplifying installation and use, and reducing purchase and installation costs.
Day Mode / Night Mode
With Solar Input Charging featuring PV18-100V/20A and a maximum capacity of 1200W, in full sun, In just 2 hours, 1200W solar panels can achieve an impressive 80% charge for the energy storage system, ensuring swift and effective recharging.

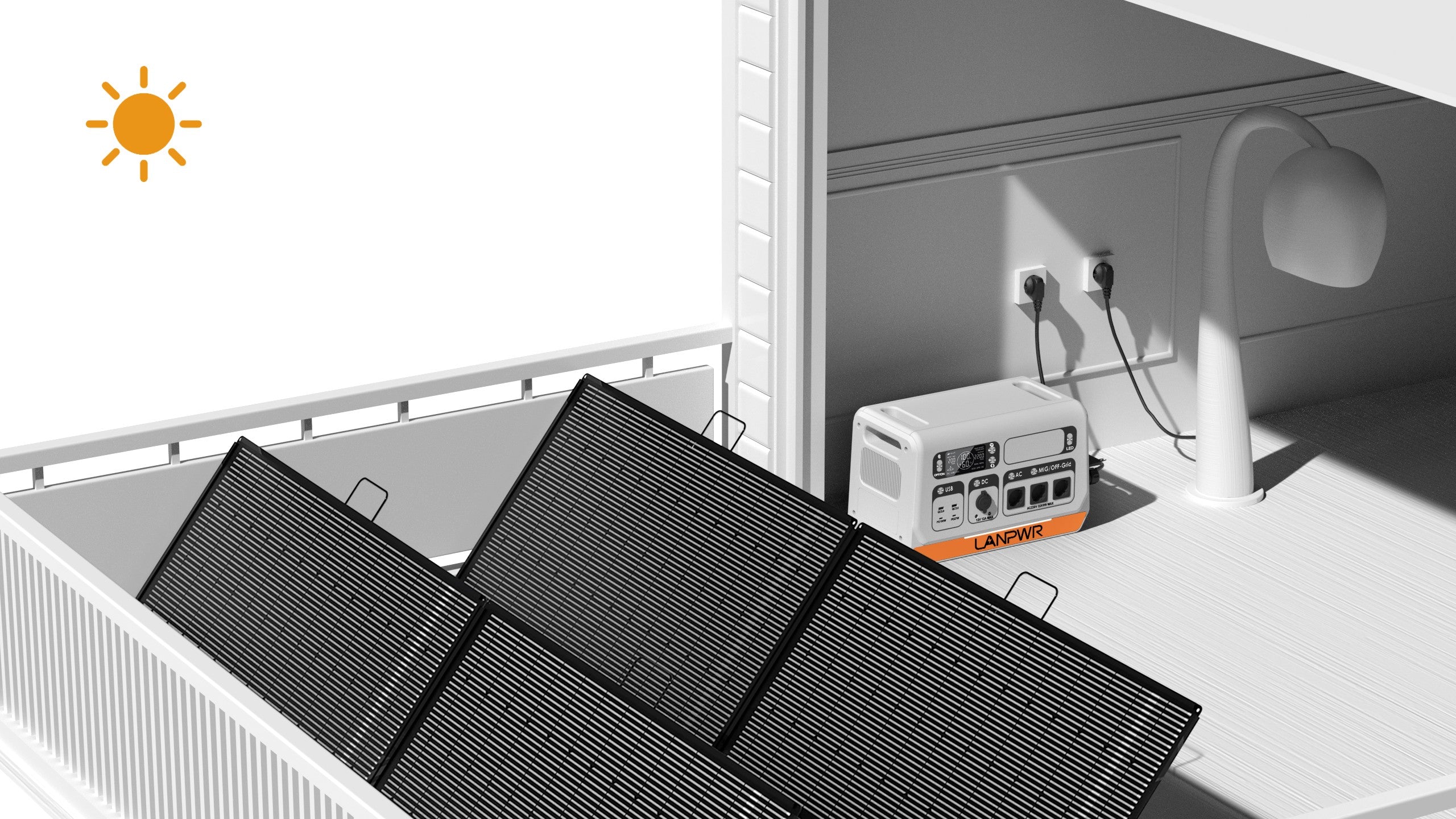

Day Mode

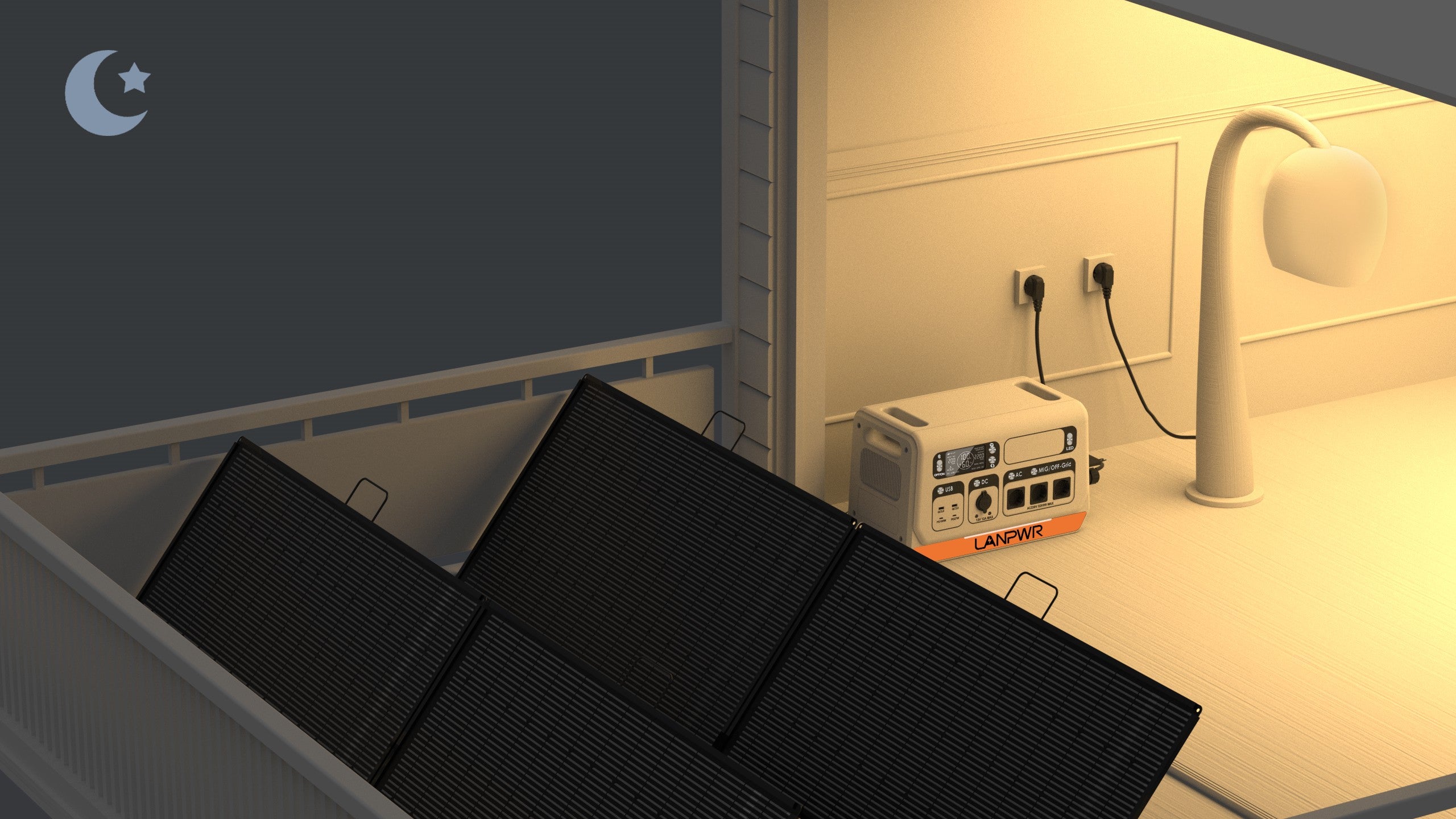

Night Mode
Power Down Mode
Experience hassle-free installation with our plug-and-play design. Our system seamlessly integrates 100W~800W, providing flexible and efficient grid connectivity for your energy needs.

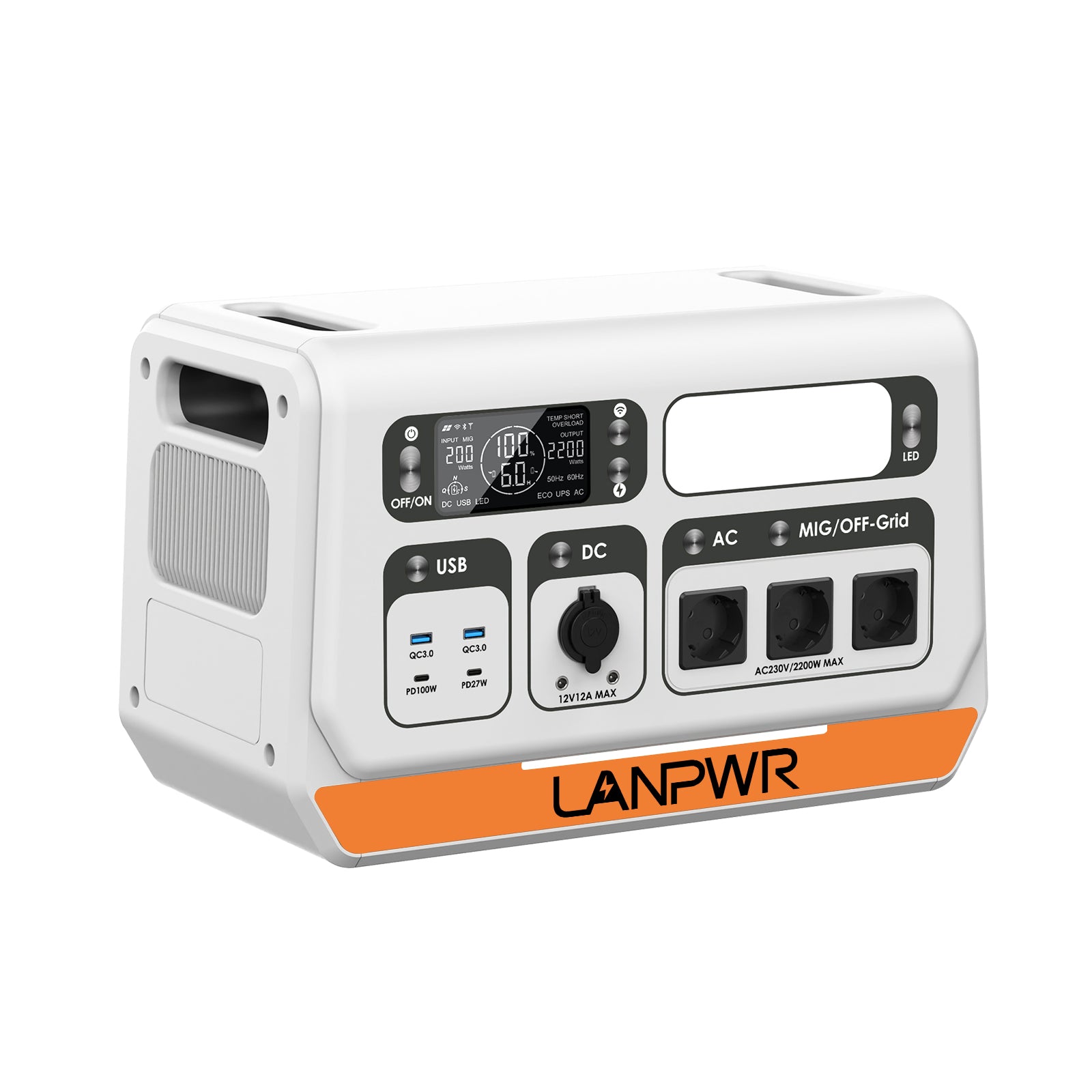

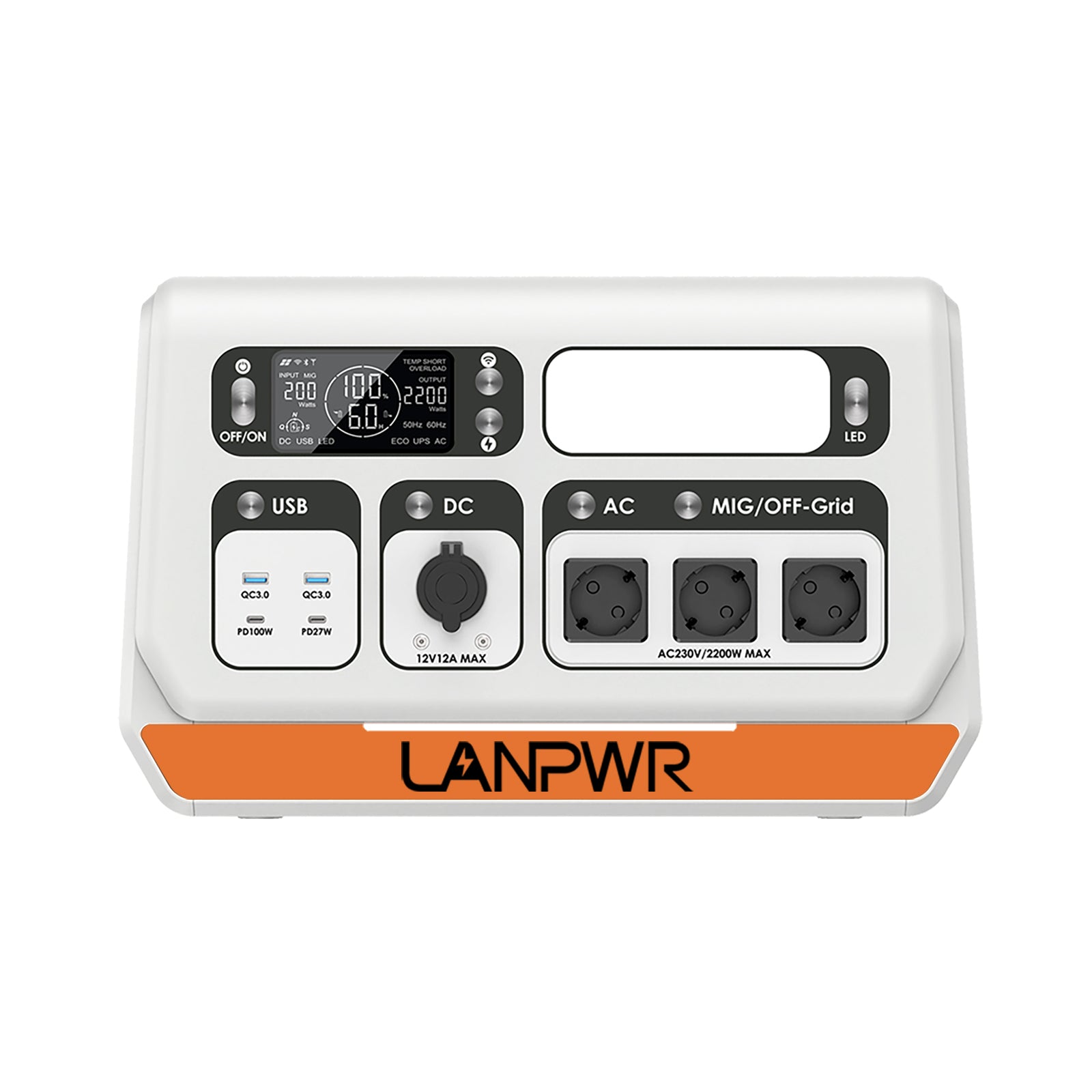

2 kWh Power Station: Whole House Appliances
Equipped with 3 AC outputs delivering 230V at 50Hz and a robust 2200W with a peak performance of 4400W, our energy storage device ensures reliable power for your home. With this capacity, it effortlessly supports the operation of most household appliances, providing seamless electricity for your entire home.
Easy Setup by plugin
Experience hassle-free installation with our plug-and-play design. Our system seamlessly integrates 200W/400W/600W/800W, providing flexible and efficient grid connectivity for your energy needs.
Product specification
Battery Capacity
AC Input Charging
Car Input Charging
Solar Input Charging
LiFePO4 2048Wh±5%(40Ah/51.2V)
AC 174-264V/1500W Max
DC12-24V/10A 240W Max
PV18-100V/20A 1200W Max
Safety Protection
Short-Circuit
Over-Current
Over-Voltage
Low-Voltage
Over-Load
Over-Temperature
AC Output Waveform
LED Light
Safety Protection
Pure Sine Wave
3W MAX, 3 Levels(L/M/H Adjustable)with SOS function
Battery Cycle Life
Pass-ThroughCharging
Weight&Size
EnvironmentalOperatingTemperature
3500 cycles,DOD≥70%
Support
23kgs/51 LBS 18.31in x 10.24in x 11.61in
Charge Temp: 0~40°C(32~104°F) Discharge Temp:-10~40°C(14~104°F)
AC
3*AC Output: 230V, 50Hz, 2200W, Peak 4400W Micro-Inverter connection output: 200W/400W/600W/800W Max Note:when the battery power ≤5%，AC output will be off. When the battery capacity≤3%, DC&USB outputs will be off (Protects battery performance)
USB
USB Output 1: QC18W Max
(5V2.4A&9V2A&12V1.5A)
USB Output 2: QC18W Max
(5V2.4A&9V2A&12V1.5A)
USB Type-C 1: PD100W
(5V3A&9V3A&12V3A&15V3A&20V5A)
USB Type-C 2:PD27W
(5V3A&9V3A&12V2.25A&15V1.8A&20V1.35A)
DC
1*Cigarette Lighter 13.8V/12A Max +2*DC5521 Rated Output 13.8V/5A Max,(Total 12A Max)
What's in box?
FAQ
1. Why we need to install a balcony PV power system?
When this power station used as a balcony PV power station, it stores energy from solar panels in the power station. And it can connect to the grid to provide power to the household, aiming to help users save on electricity bills.
2. Why does it stop output and stop working when the battery capacity drops to 5%?
This is to better protect the battery's cycle life during charging and discharging, extending its usage time. When the device's battery level decrease to ≤ 5%, it will automatically stop grid connection or inverter output.
3. Why does it automatically connect to the grid only when the battery level is ＞95%?
In order to avoid energy wastage when household electricity consumption is low during daytime when people go out, the device prioritizes charging and energy storage during the day. It automatically connects to the grid once the battery is charged to 95%. This default grid connection capacity is set to 95%, and users can adjust it as needed through the app interface.
4. Why does the automatic grid connection mode stop when the battery capacity decreased to ≤90%?
Solar power generation is subject to weather conditions in automatic grid connec-tion mode.To prevent the battery from discharging excessively in automatic grid connection mode, which could lead to insufficient battery capacity when actual grid connection is needed.So, when the battery level ≤90%, it will automatically stop grid connection. The default level for stopping grid connection is set to ≤90%, and users can adjust it as needed through the app interface.
5. Which solar panels can match the 2200PRO?
The 2200PRO has an input operating voltage range of 18-100V, and you can freely combine solar panels based on your requirements and the installation area's size. If the solar panel was purchased with the 2200PRO from LANPWR, we recommend the following combinations:
1. Using 4 pcs of 30V/180W solar panels 2 in parallel and 2 in series.
2. Using 4 pcs of 30V/180W solar panels in parallel.
If the solar panels are not purchased from LANPWR, we recommend the following combination:
1. Using 4 pcs of 18V/200W solar panels in series.
2. Using 3 pcs of 22V/200W solar panels in series.
3. Using 2 pcs of 36V/550W solar panels in series.
Note: No matter how many solar panels are connected in series, the total open-circuit voltage when connected in series must be less than 96V.
6. How long can the 2200PRO support on grid-connected operation?
The available grid connection duration depends on the battery capacity and grid-connected power. For instance, if the main unit's battery is fully charged with a capacity of 2048WH, and the grid-connected power of 200W is selected , the grid connection duration can be calculated as follows: Grid connection duration = Battery capacity * Conversion efficiency / Grid-connected power (2048 * 0.9 / 200 ≈ 9.5 hours).
7. Why is there any sound during use or charging?
The 2200PRO with intelligent temperature control system, built-in fans help our
product to get better cooling and securing usage, slight noise is normal during using
or charging.
8. Can i charge the 2200PRO while a device is plugged in?
Yes, this unit support Pass-Through Charging, you can simultaneously charge other
devices while recharging the 2200PRO.
9. Can it be used to jump start a car?
No,it cannot be used to jump start a vehicle.
However, it can be used as power supply for automobiles. You can recharge the
car via a power supply cord, which is available for purchase separately.
10. Why is the output to the low-power device automatically turned off after several hours?
To avoid forgetting to turn off the output during use that results in battery
consumption,the power station will turns to Auto-Sleep mode when detects no
device is connected or the connected device is less than or equal to a certain
value. When without charging, and the AC&DC&USB outputs≤2W, the device will
automatically shut down after 1 hour.
11. Is the 2200PRO waterproof?
No, please do NOT store it in a humid environment for a long time.
Please store it in a dry and cool place.
12. Can I use or charge the 2200PRO in sub-zero temperatures? Temperature ranges for 2200PRO are:
AC Charging: 0℃-40℃(32℉- 104℉); Discharge: -10℃- 40℃(14℉- 104℉);
Storage: -20℃- 60℃(-4℉- 140℉).
Technically, it can power electrical devices under such situations, but please avoid
charging it.
13. Can I use third-party solar panels?
As long as it meets the input requirement. Please note that input voltage exceeding the input range may cause permanent damage to the 2200PRO Balcony Solar System.
14. I wish to connect multiple solar panels with the 2200PRO. How should I do it?
Connect them in series or parallel. This 2200PRO has independent solar input, with an open circuit voltage in the range of 18-100V. Please do not exceed this voltage range.
15. Speaking as a German user, do I need to register this system with the power grid? Can you help me with it?
To register with your local grid operator, as the requirements and process may vary, please contact them for specific information.
16. Can I install the system by myself?
Yes, the LANPWR 2200PRO Balcony Solar System is a plug-and-play design that requires no professional installer, the installation and maintenance of the system can be done on a do-it-yourself basis.
17. In the event of a power outage, how can the system continue to supply energy?
For safety concerns, 2200PRO's grid-connection function will stop the current output after a power outage in the home, but energy storage mode can be used as a backup power supply to connect to the appliance.
